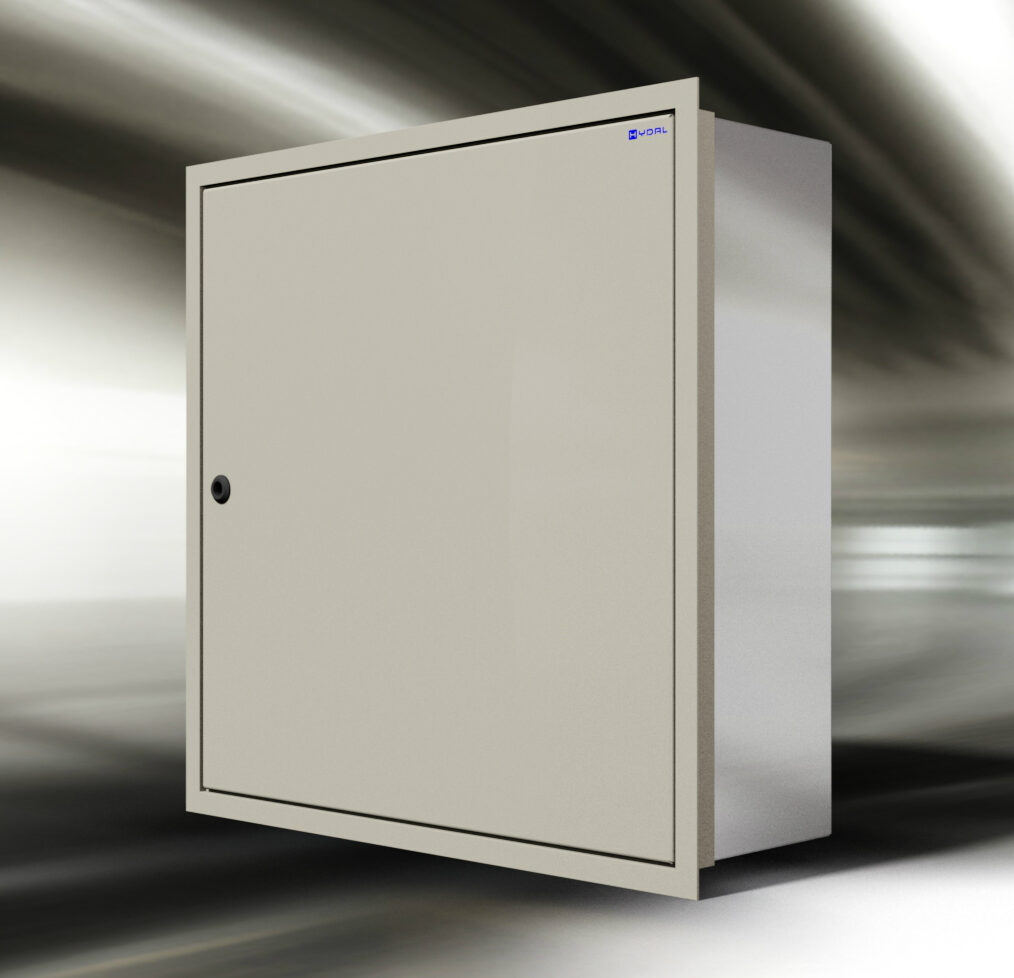

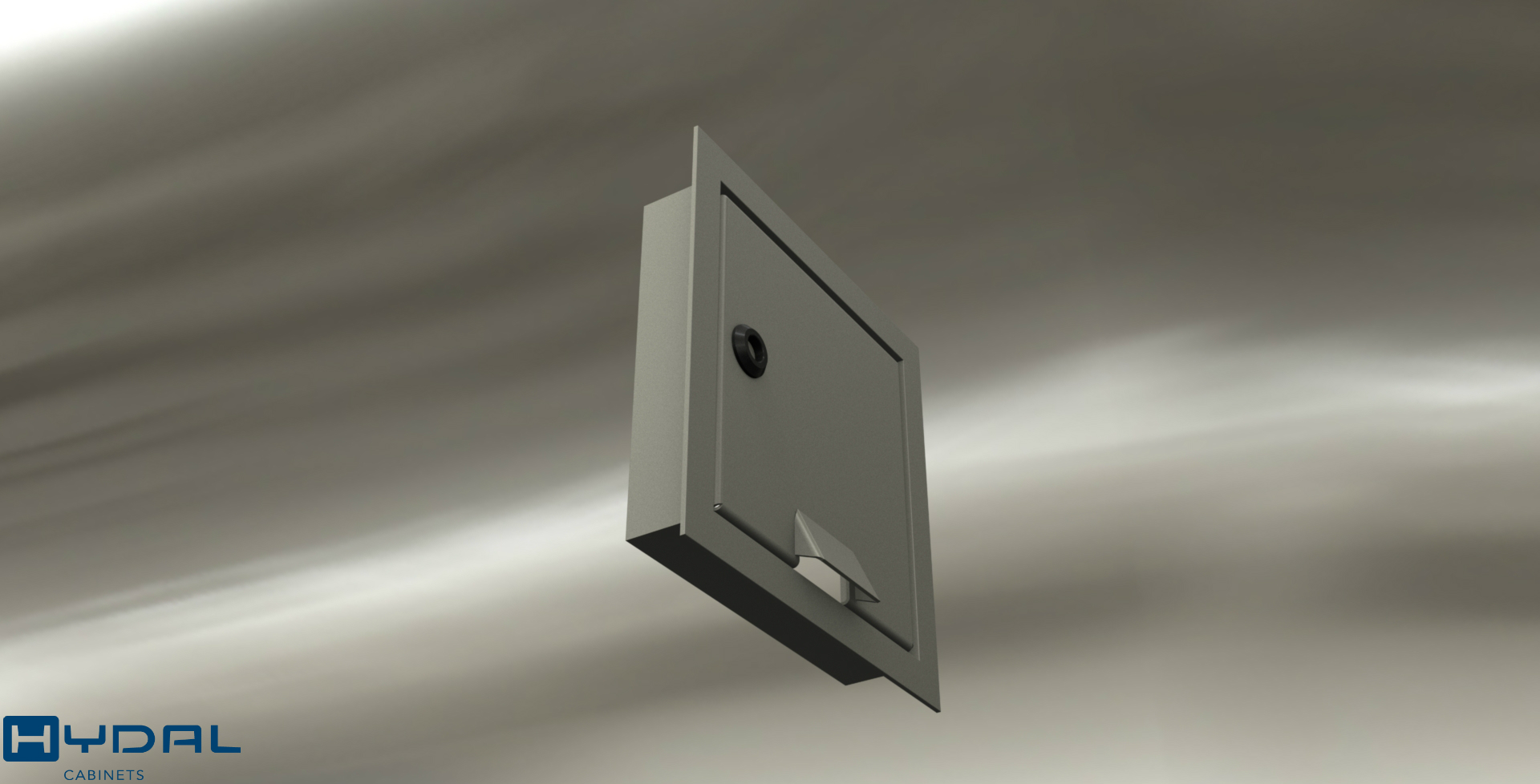

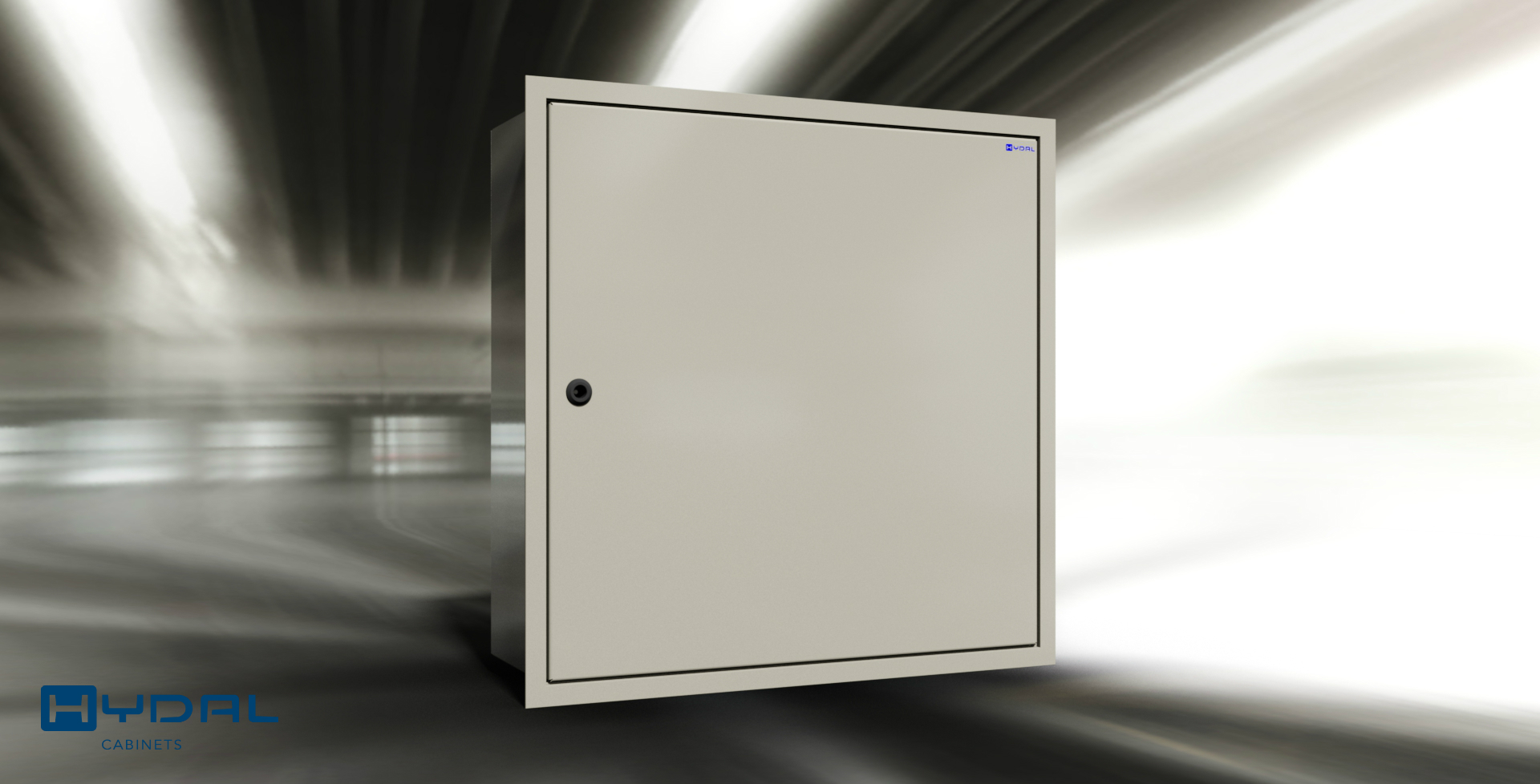

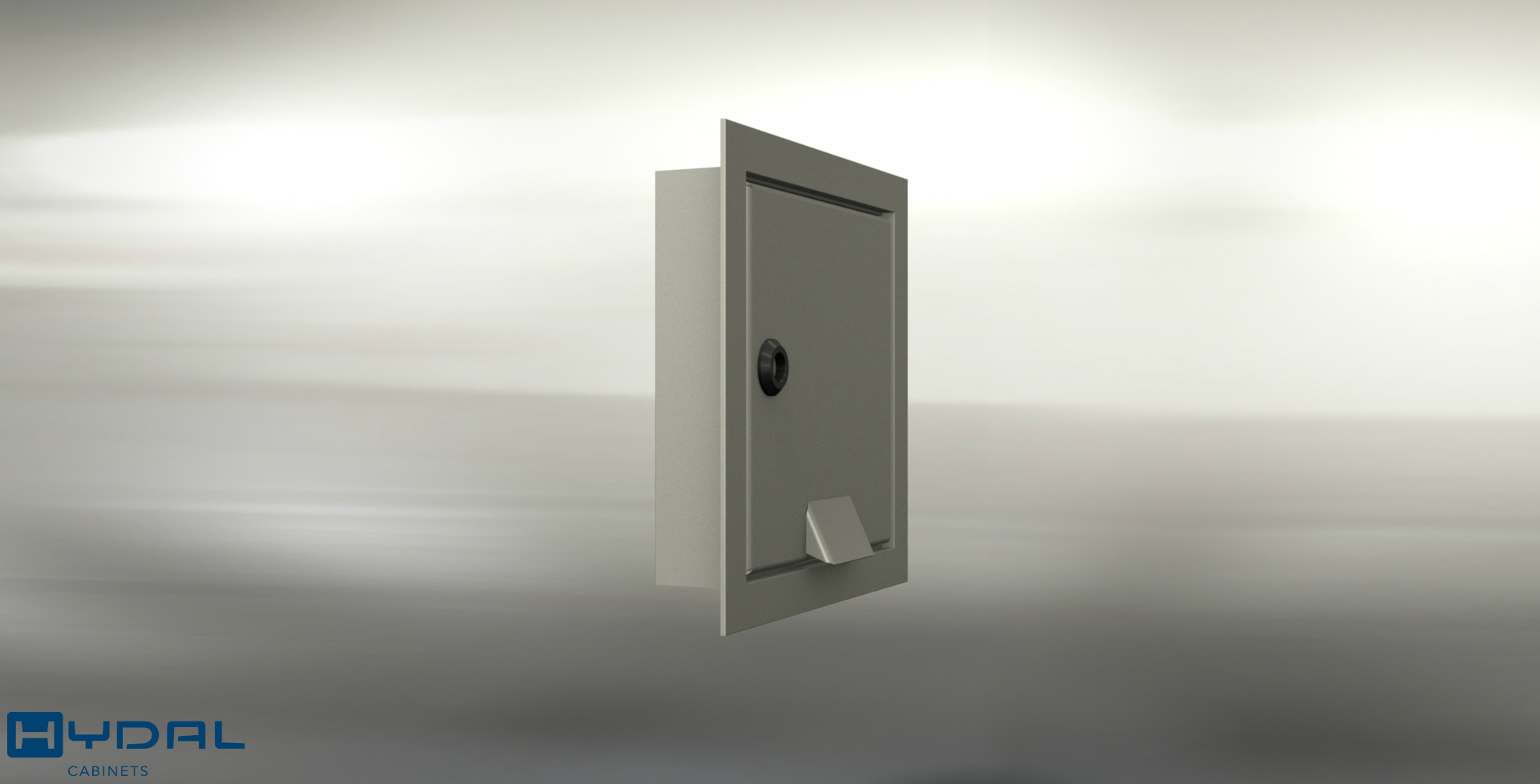

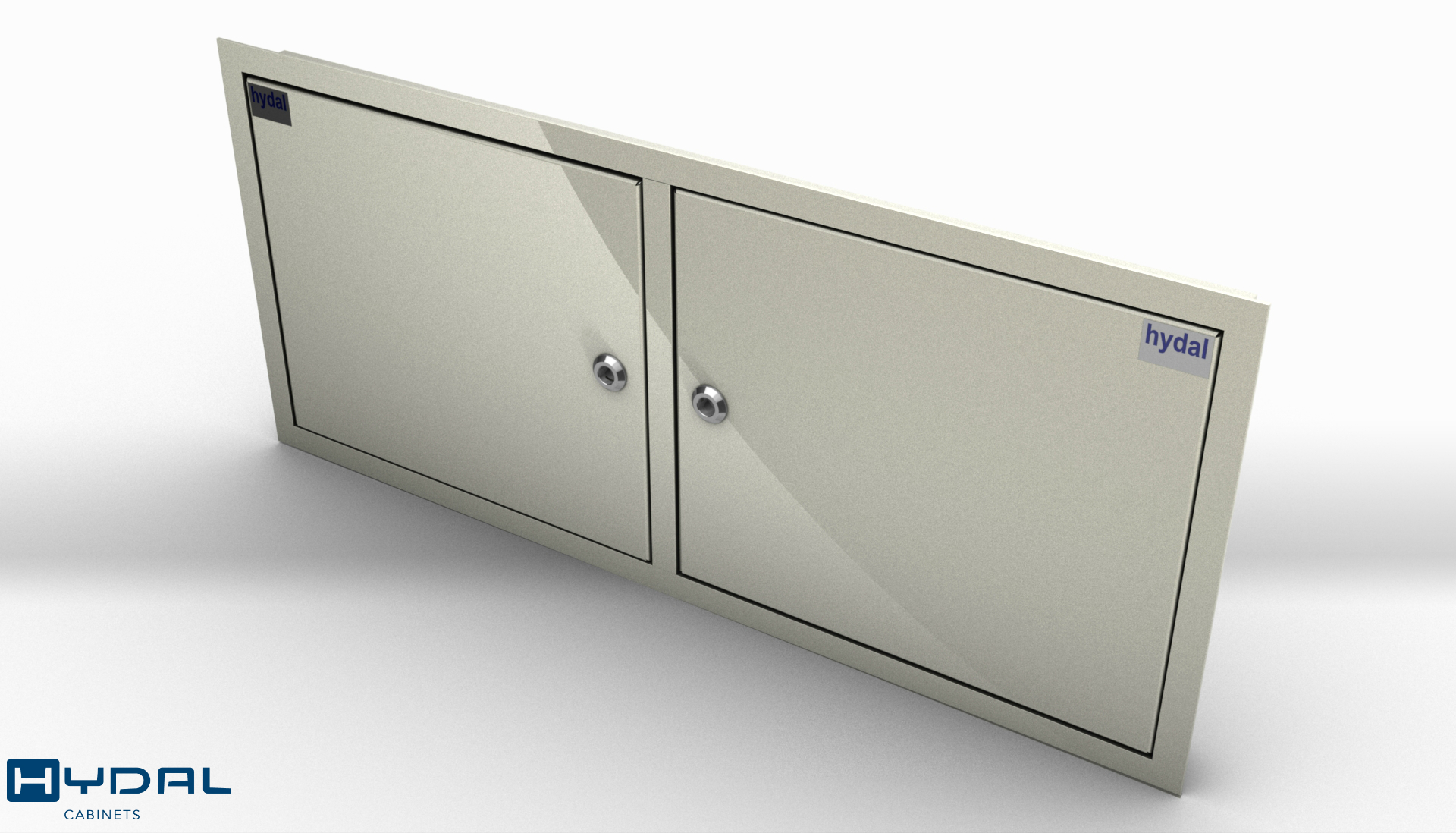

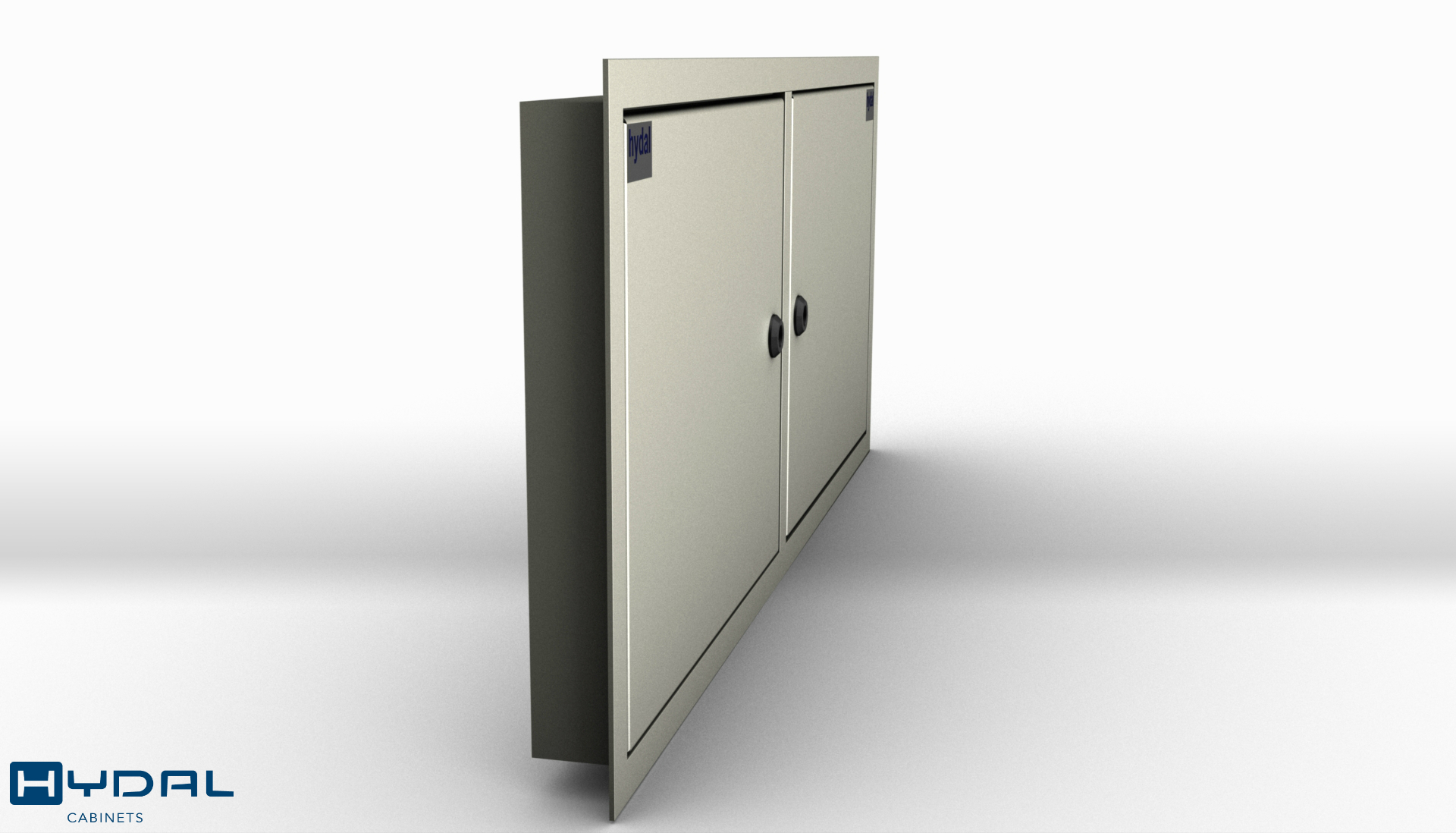

UP inn wall cabinet

A high-quality, long lasting aluminium
product made for
harsh environments

The UP cabinet is designed and engineered to be a high-quality product with a long life span even in harsh environments. UP is designed for embedding in walls/niches. UP cabinets can also be mounted in other cabinets and function as departments in larger cabinet solutions.

Specifications
for UP-cabinets

Multiple
choices

• Optional Width x Height x Depth

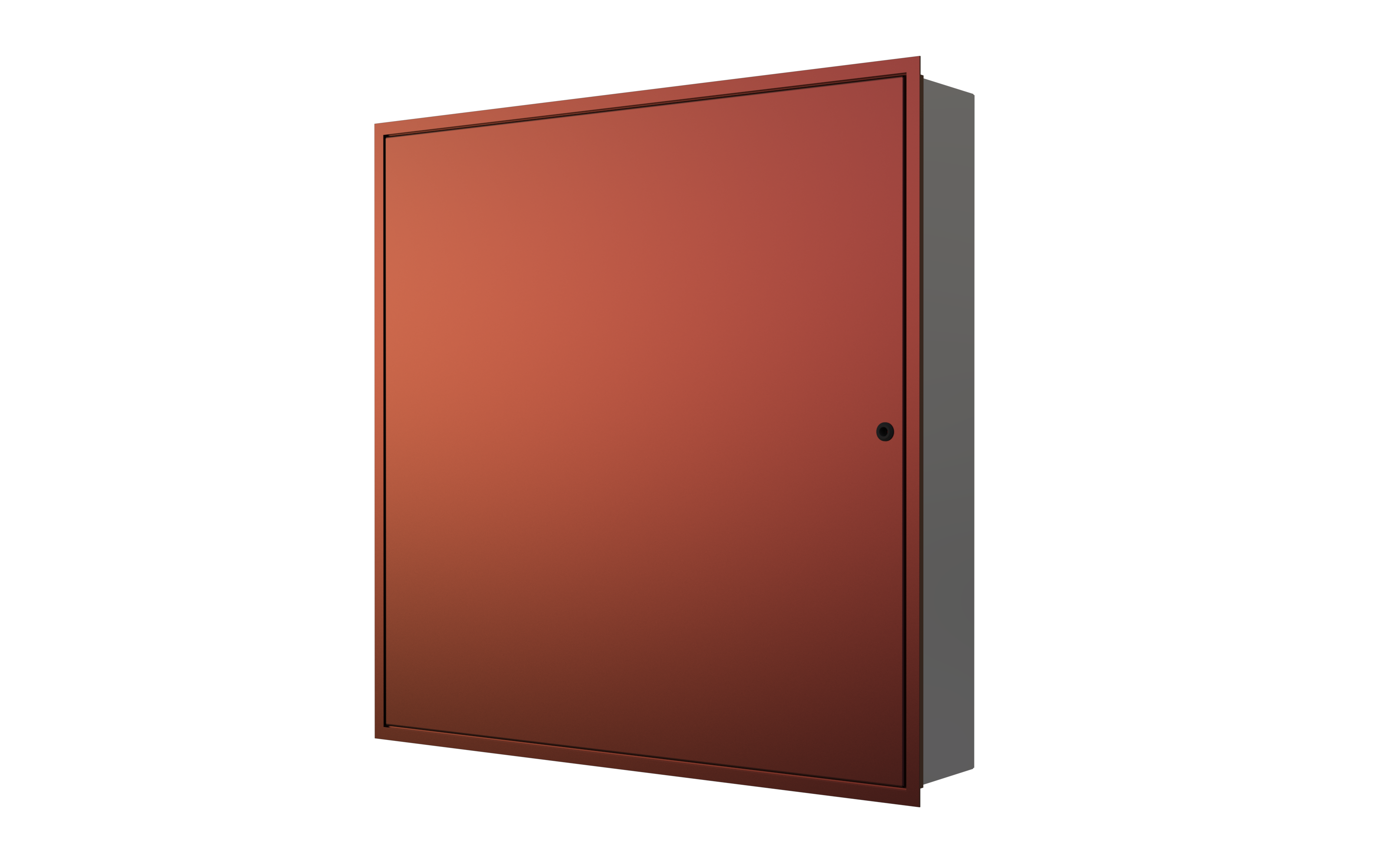

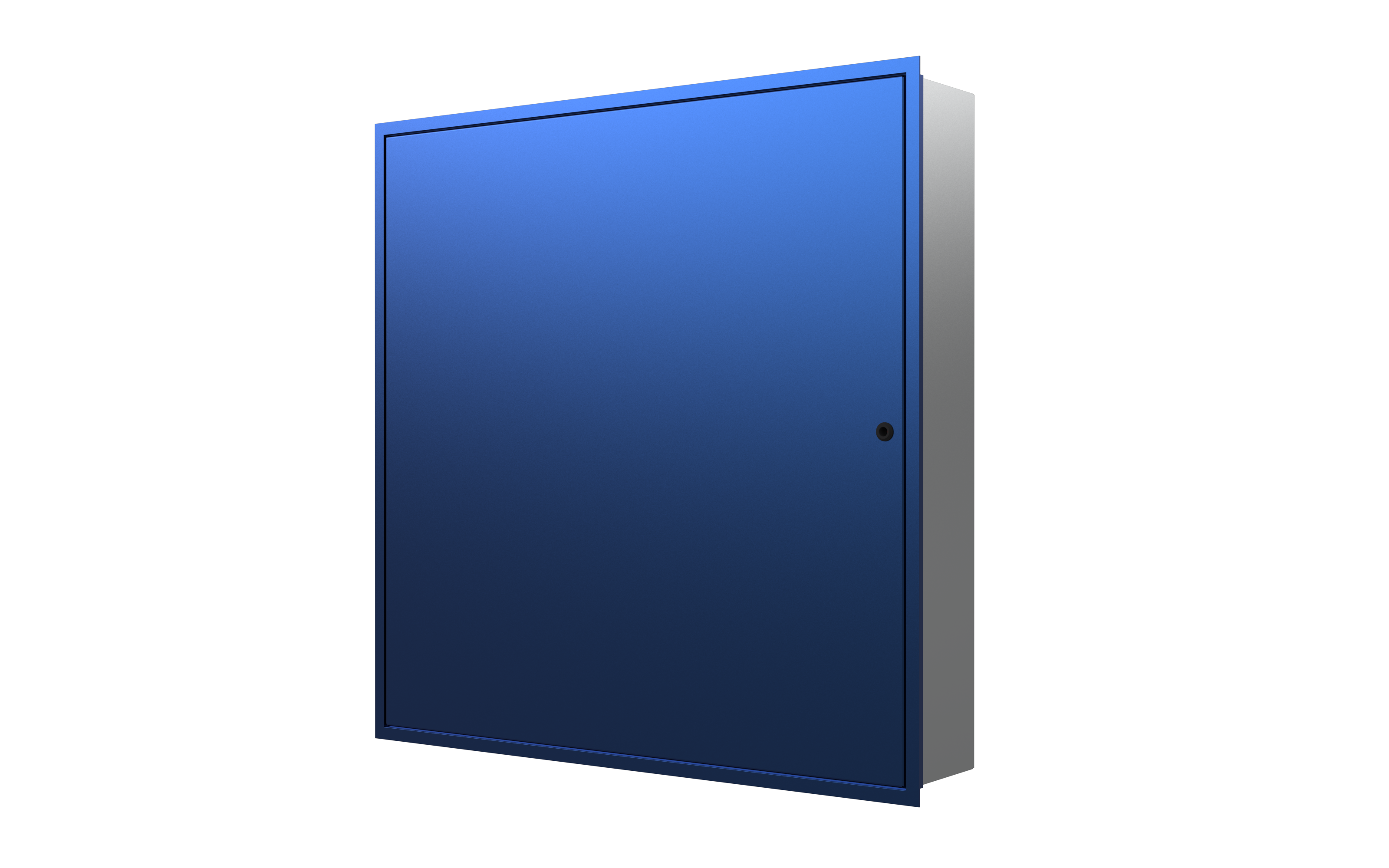

• Optional color

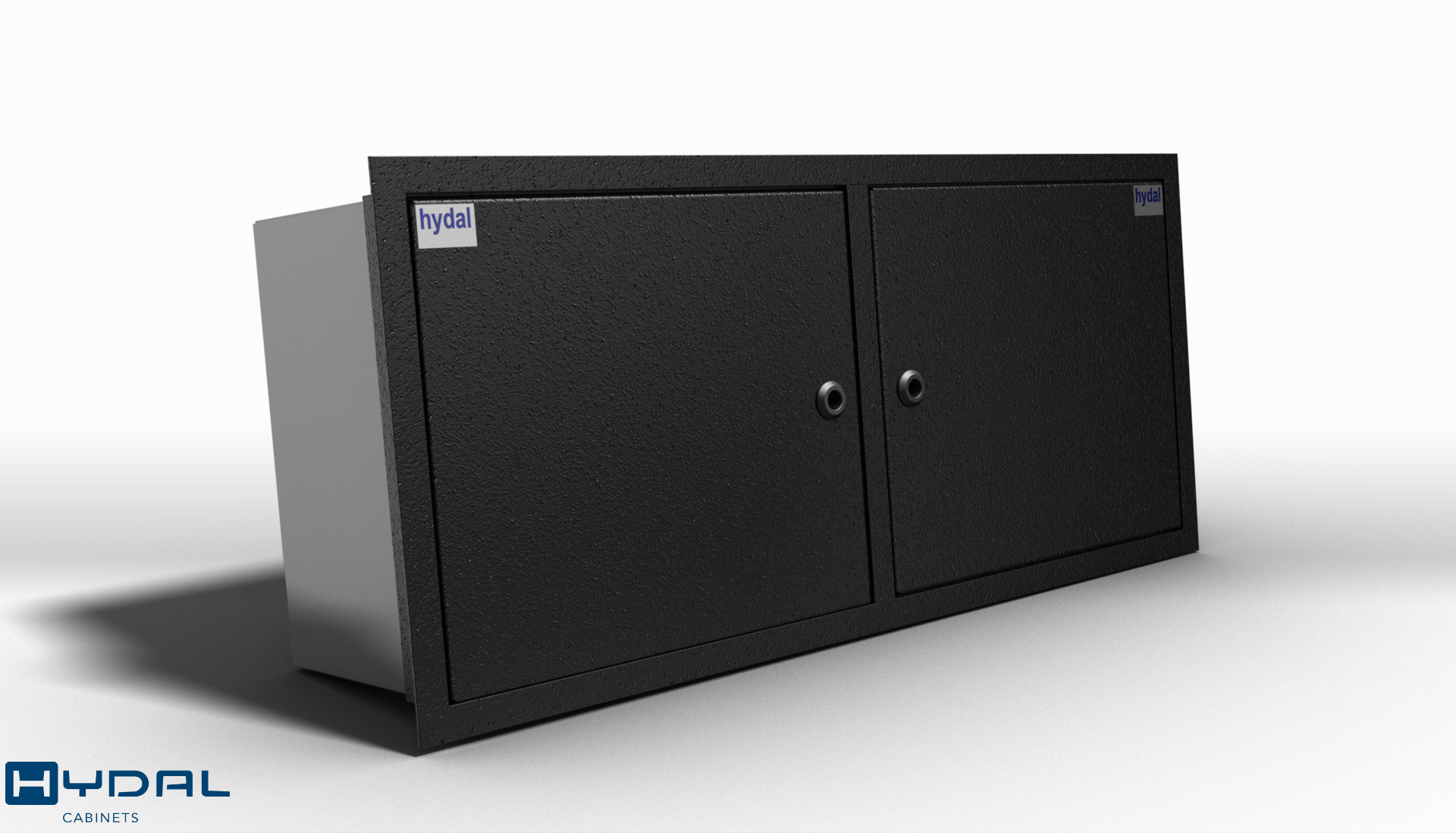

• Optional door configuration
• Cooling and climatization, heating elements, fans, air conditioning, heat exchangers etc
• Lights and door switch
• Cable glands of various variants
• 19″ racks and shelves
• Mounting plates, fixed and swivel
• Interior door

UP-datasheet

Safe and flexible
installation

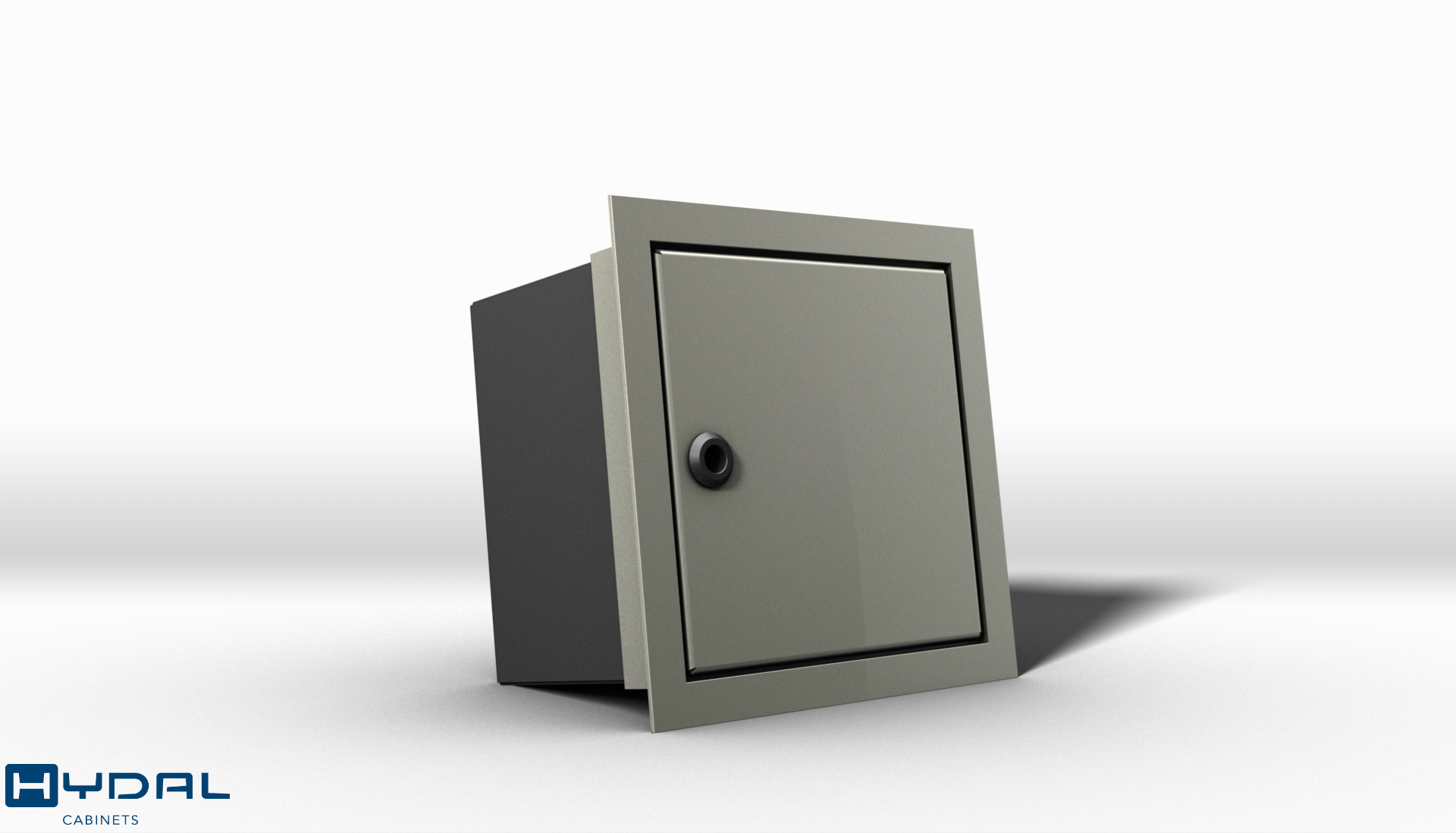

• Can be integrated into a wall or niche
• Customer-specific options

Technical
information

• Dimensions:
  Width: from 260 to 2000 mm.
  Height: from 260 to 2100 mm.
  Depth : 75-800 mm
• IP grade: Standard IP54, can also be supplied IP66 up to WxH 800x1200mm
• Hinges: 120 degrees
• Pretreatment:
  ECLPS, highly corrosion resistant pre-treatment before painting
• Painting:
  Polyester powder coating, standard is RAL 7032, other colors on request.
• Approvals:
  IK 05
• Applications:
  Most indoor and outdoor applications and on ships

/
