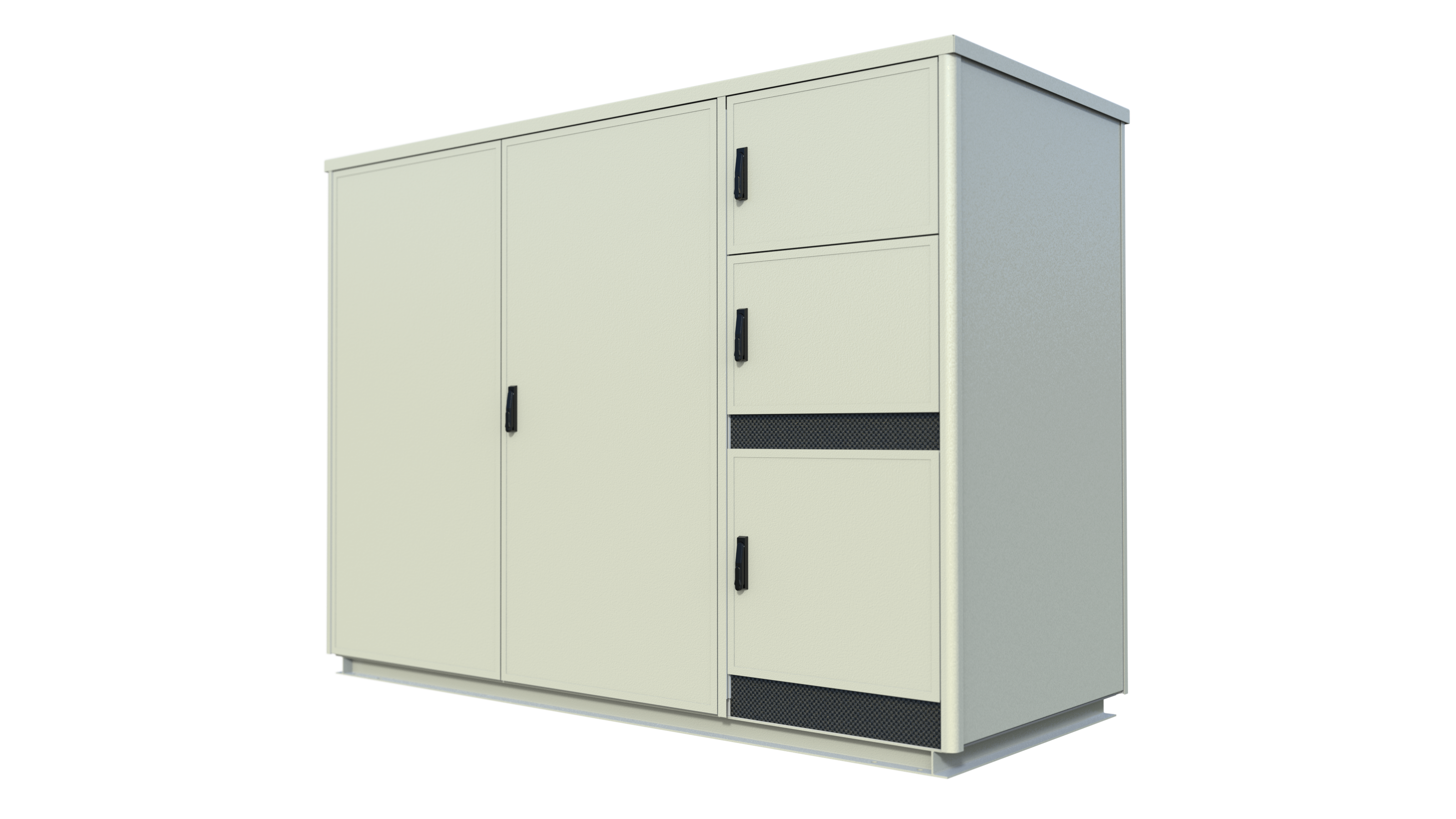

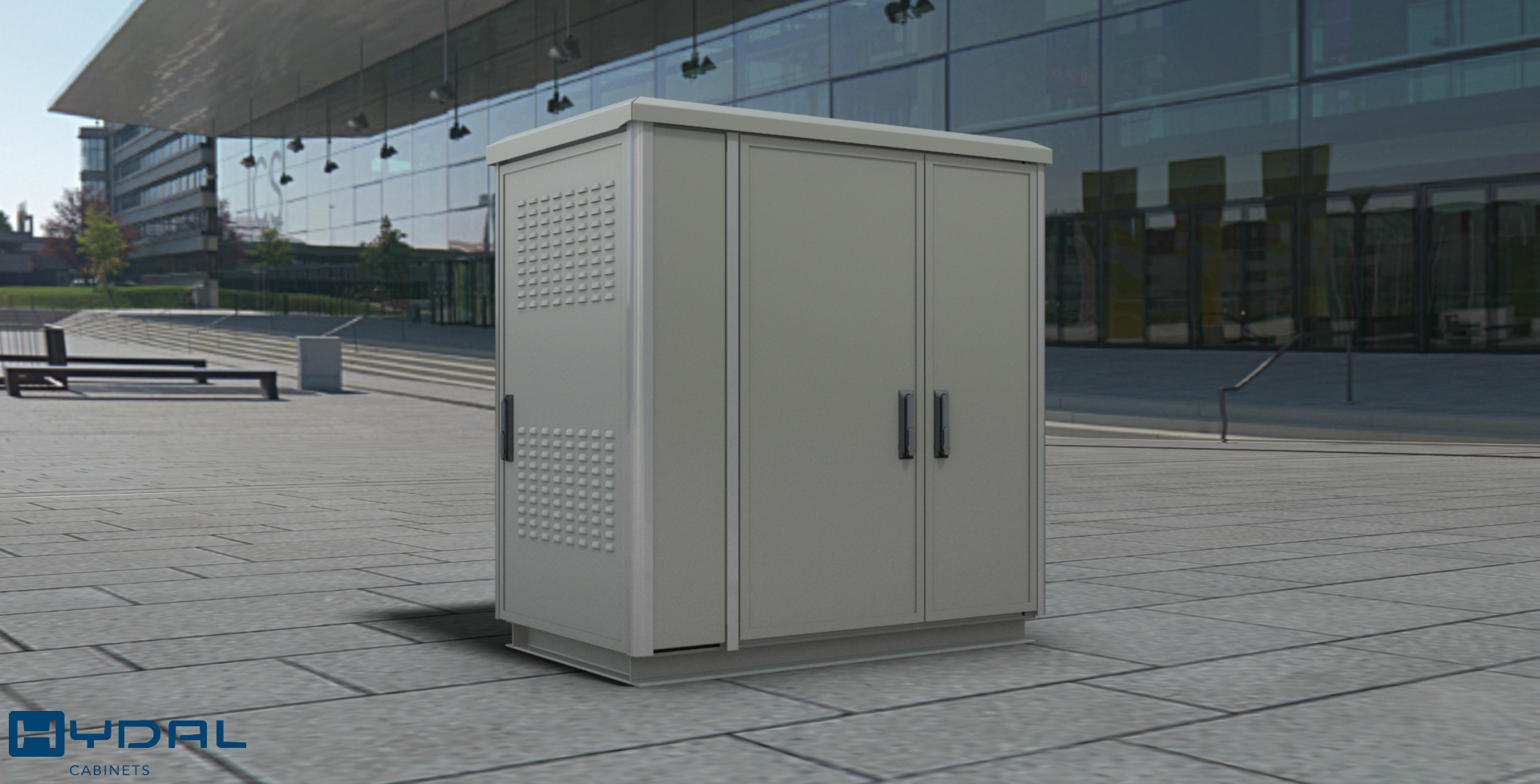

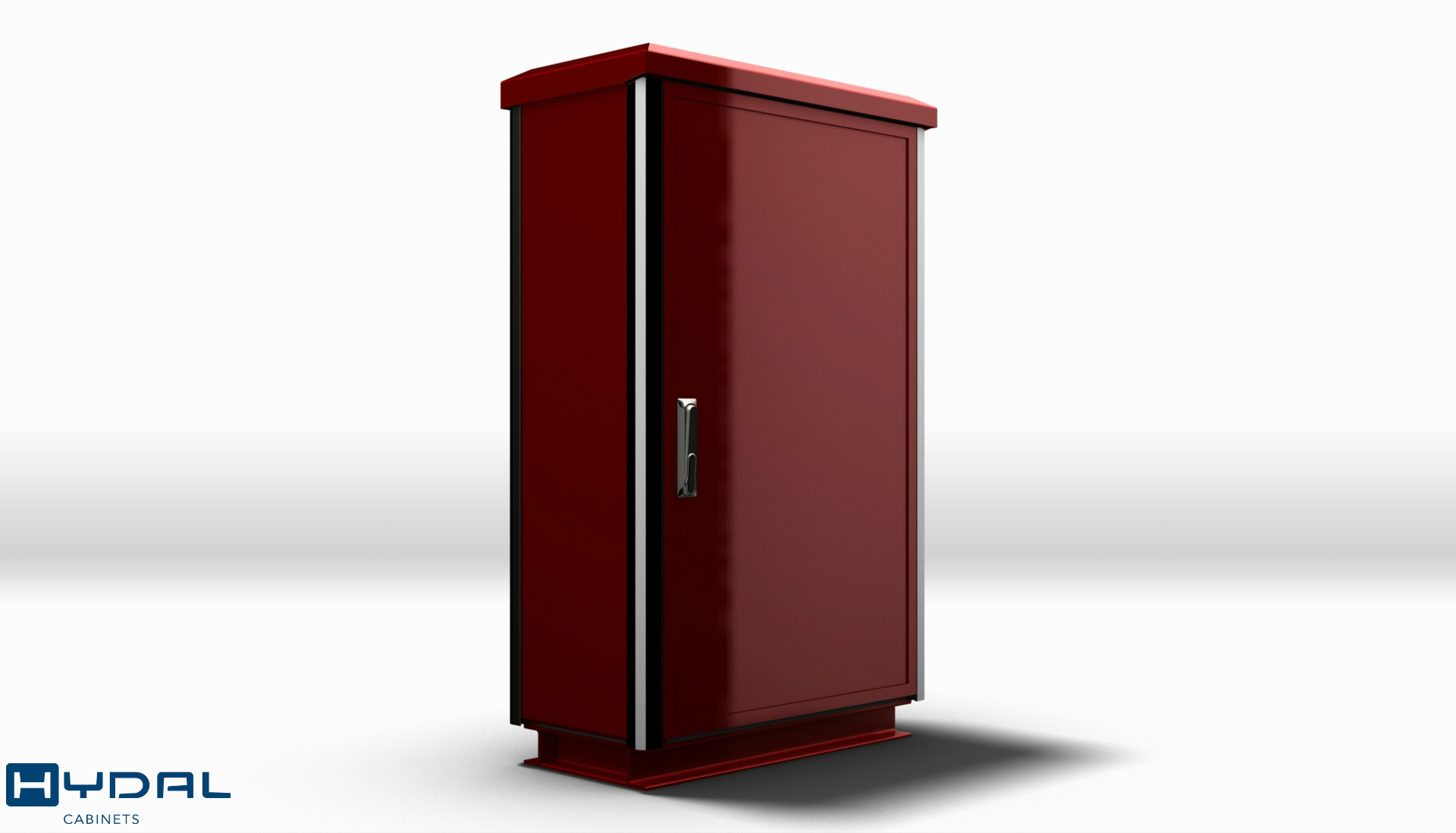

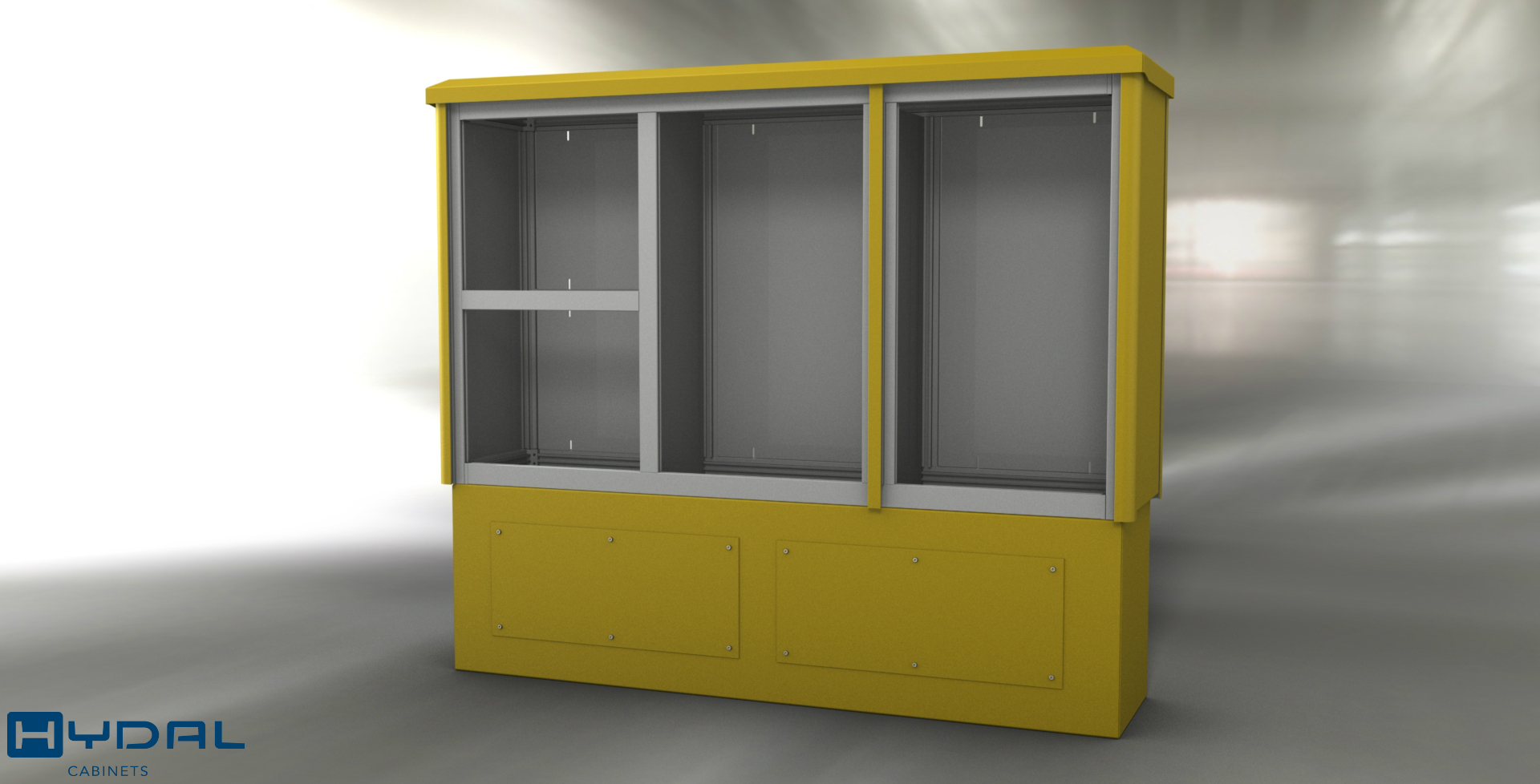

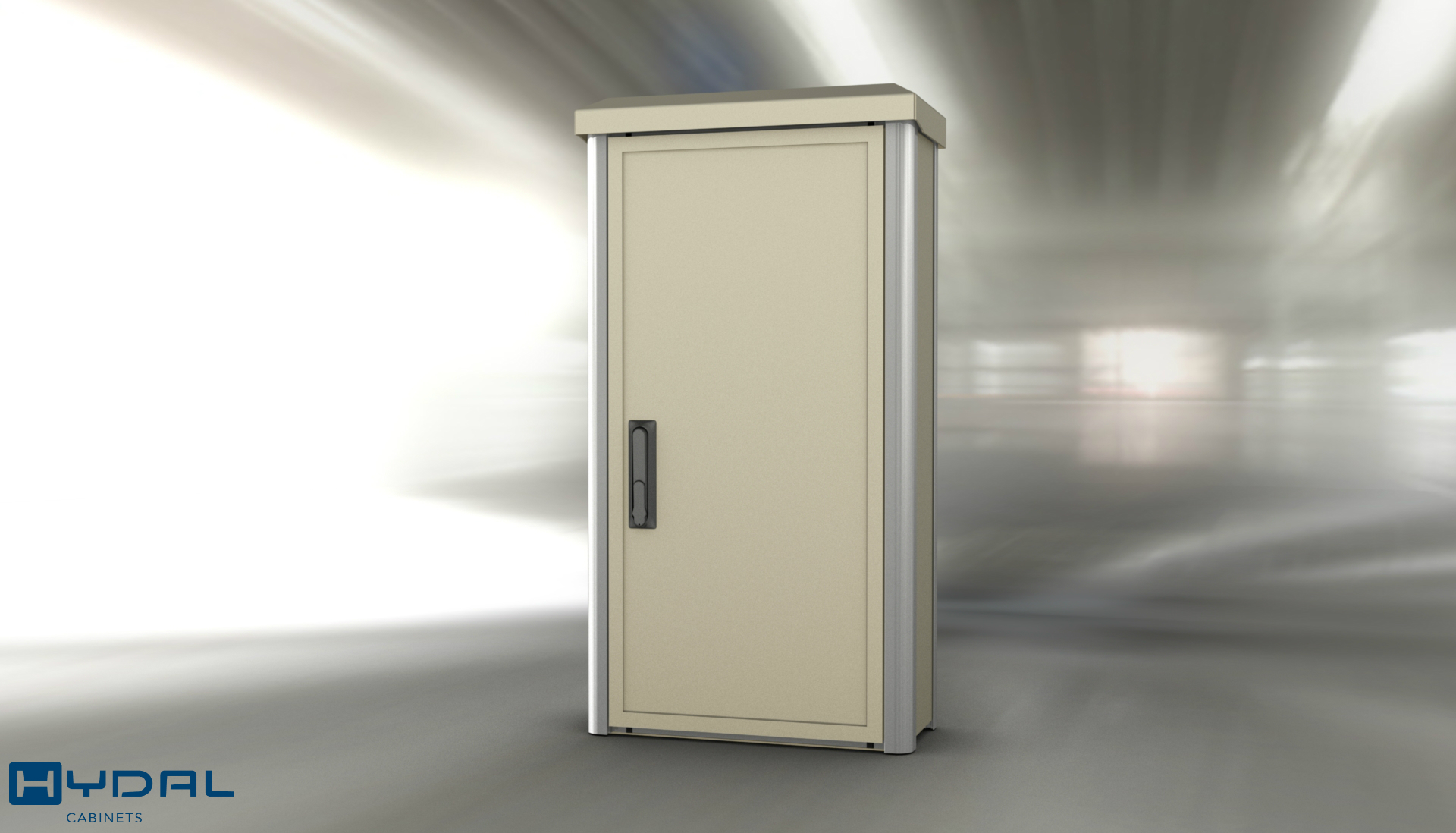

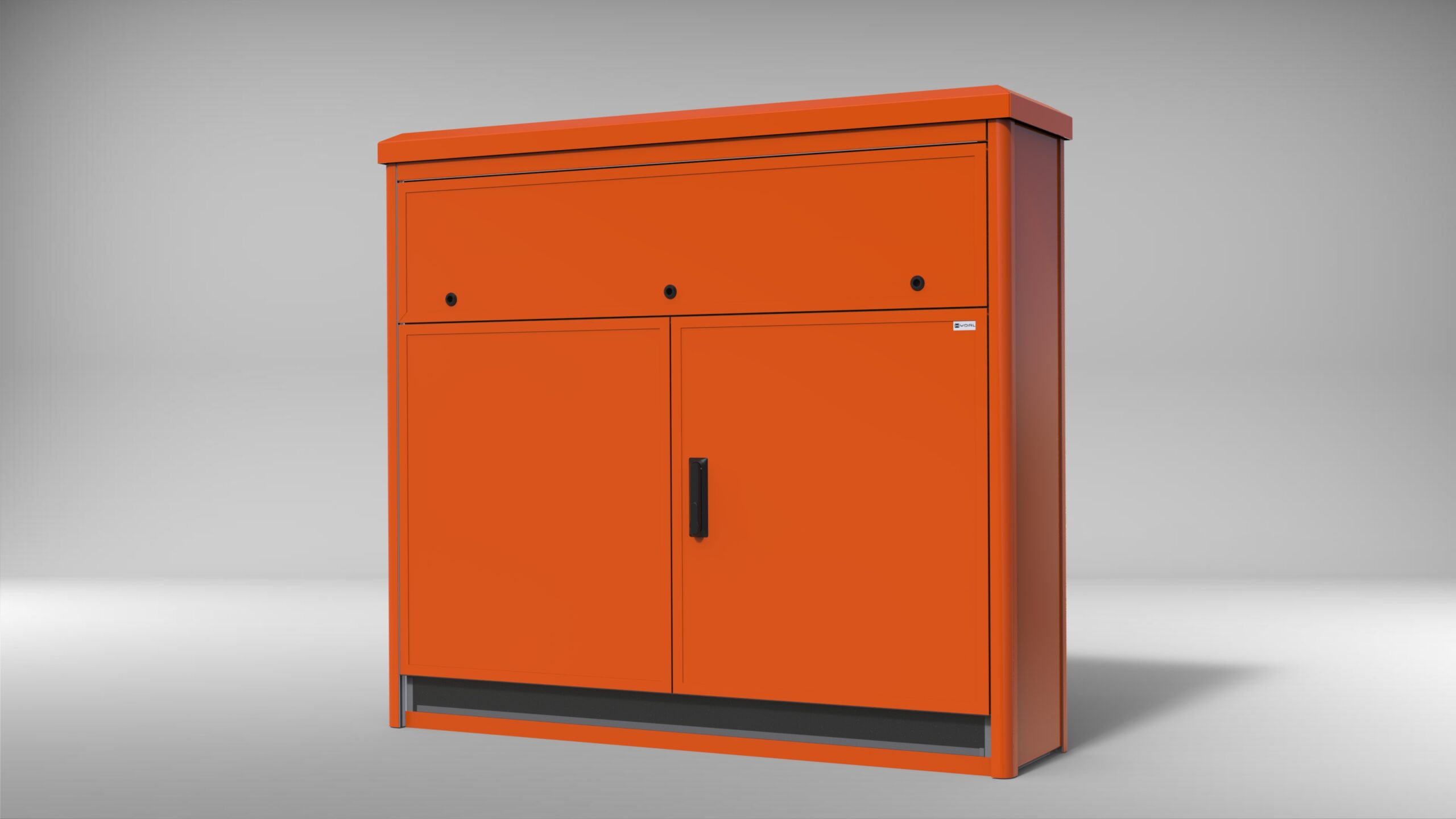

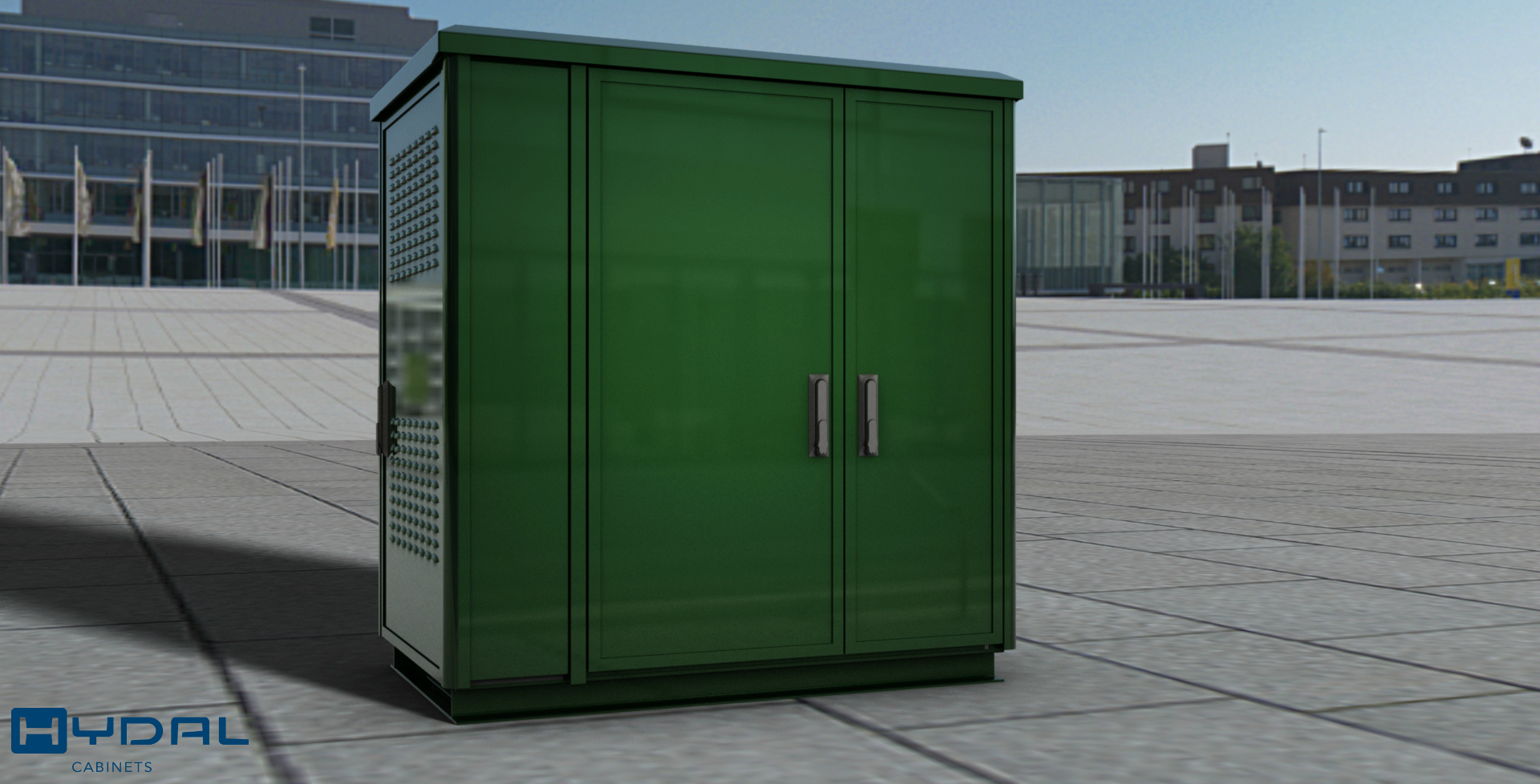

ALX 2000
Double-walled
aluminium cabinet
for harsh environments
+
Double roof with ventilation
+
Plinth with optional height
+
Door with stainless steel hinges and high quality locker
+
Prepared for internal or external fixing to a wall or pole
The ALX 2000 is developed specifically to provide sensitive electronics with safe operating conditions, even in harsh environments. The double-walled construction contributes to stabilize the operating temperature and provides a condensation-free environment within the cabinet. With natural convection, walls, doors and ceilings are aired without compromising protection against dust and moisture.
Specifications for ALX 2000
Multiple
choices
- Optional Width x Height x Depth
- Optional color
- Optional door configuration
- Optional stainless steel plates in the ceiling, door and exterior walls
- Cooling and climatization, heating elements, fans, air conditioning, heat exchangers etc
- Lights and door switch
- Cable glands of various variants
- 19″ racks and shelves
- Mounting plates, fixed and swivel
- Interior door
Safe and flexible
installation

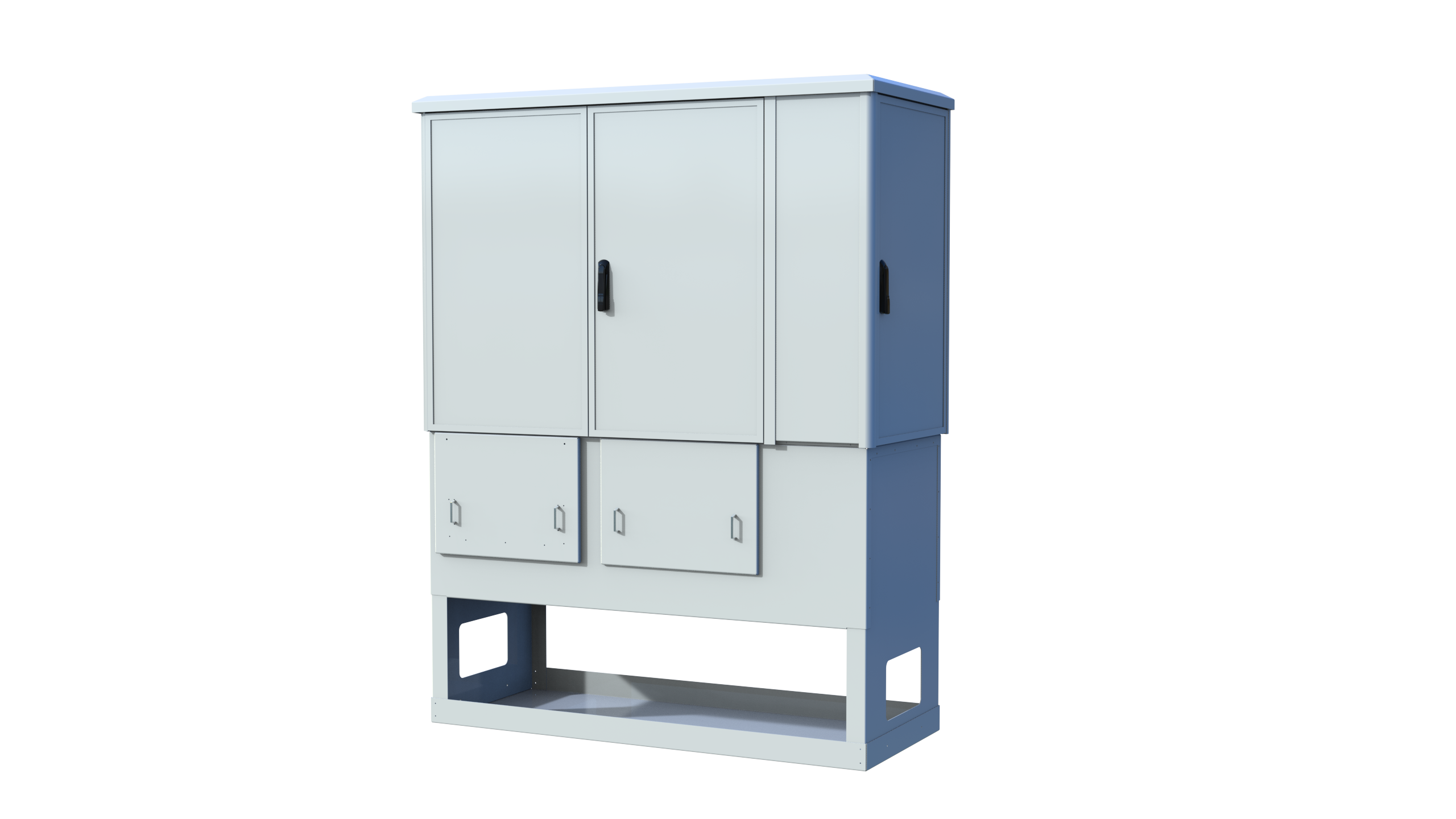

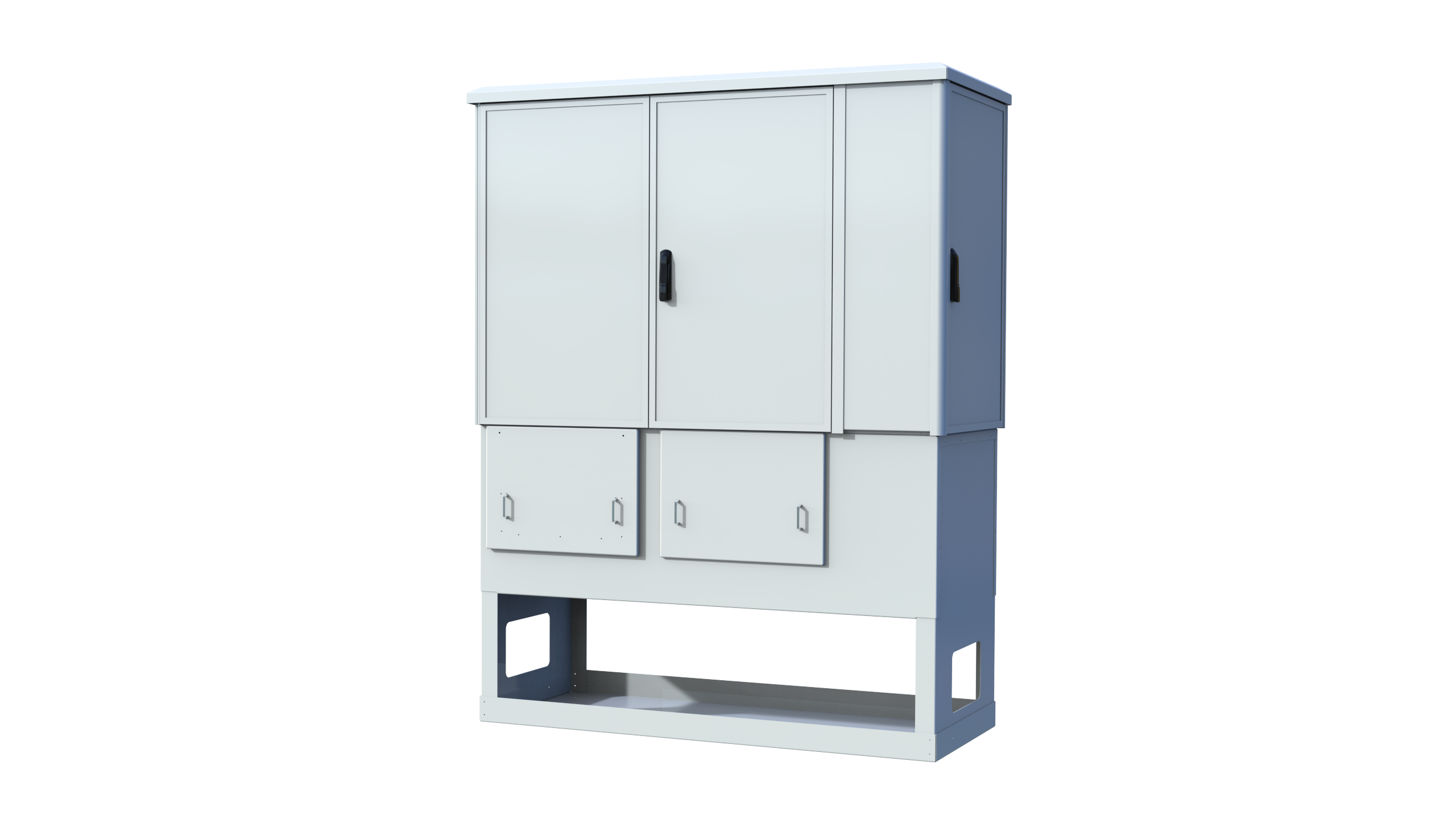

- From 75 mm base/plinth for concrete foundation with fixed height, optional cover plate or door in front
- Base/plinth for trench, optional fixed height, optional cover plate or door in front
- Adjustable base/plinth 600-900mm, cover plate in front
- Wall or pole mounted
- Customer-specific options
Technical
information
- Structure:
Framework in aluminium profiles covered with 2 mm plates in inner and outer walls - IP range: Standard IP55, can also be supplied IP65/66
- Pretreatment: ECLPS, highly corrosion resistant pre-treatment before varnish
- Painting: Polyester powder coating, standard is RAL 7032, other colors on request.
- Approvals:
EN 62208
IK 10
ETS 300 019 -2-4 - Applications:
All outdoor applications
Please get in touch if you have any questions, you want to order or want an offer for ALX 2000.
