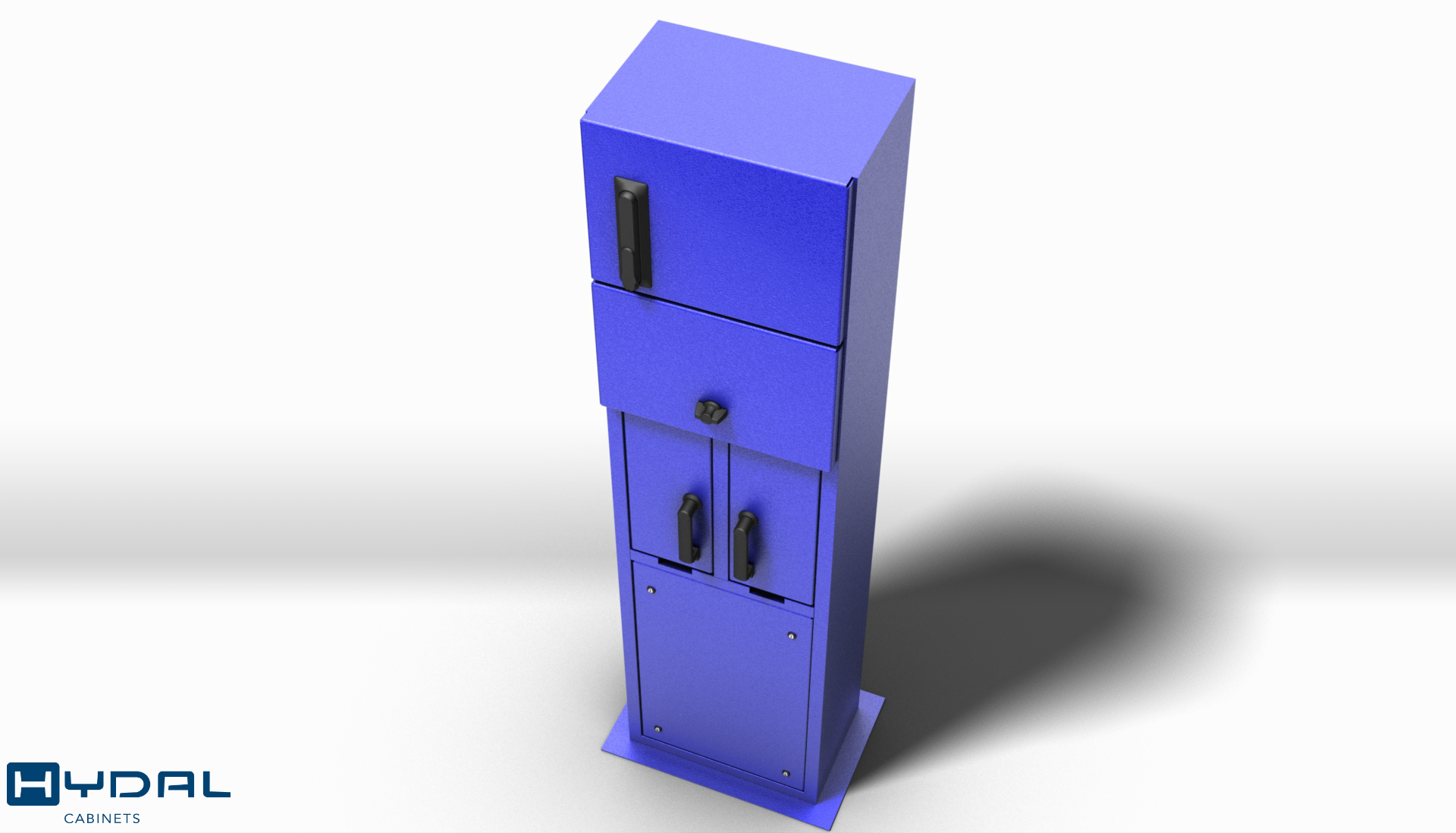

AP indoor/outdoor cabinet
A high-quality, long lasting aluminium
product made for
Harsh environments
The AP cabinet is designed and engineered to be a high-quality product with a long life span even in harsh environments. AP cabinets can also be mounted within other cabinets as separate departmens in larger cabinet solutions.
Specifications
for AP-cabinets
Multiple
choices
- Optional Width x Height x Depth
- Optional color
- Optional door configuration
- Cooling and climatization, heating elements, fans, air conditioning, heat exchangers etc
- Lights and door switch
- Cable glands of various variants
- 19″ racks and shelves
- Mounting plates, fixed and swivel
- Interior door
Safe and flexible
installation
- From 75 mm base/plinth for concrete foundation with fixed height, optional cover plate or door in front
- Base/plinth for trench, optional fixed height, optional cover plate or door in front
- Adjustable base/plinth 600-900mm, cover plate in front
- Wall or pole mounted
- Customer-specific options
Technical
information
- Structure:
Sides, roof and bottom made from aluminium profiles.
Door and back wall in aluminium sheet. - Dimensions:
Width: from 260 to 2000 mm.
Height: from 260 to 2100 mm.
Depth: 75, 100, 150, 200, 230, 250, 300, 350, 400 or 600 mm. - IP grade: Standard IP54, can also be supplied IP66 up to WxH 800x1200mm
- Hinges: 120 degrees
- Pretreatment:
ECLPS, highly corrosion resistant pre-treatment before painting - Painting:
Polyester powder coating, standard is RAL 7032, other colors on request. - Approvals:
IK 05 - Applications:
Most indoor and outdoor applications and on ships
