Stainless steel cabinets
Single- and double wall

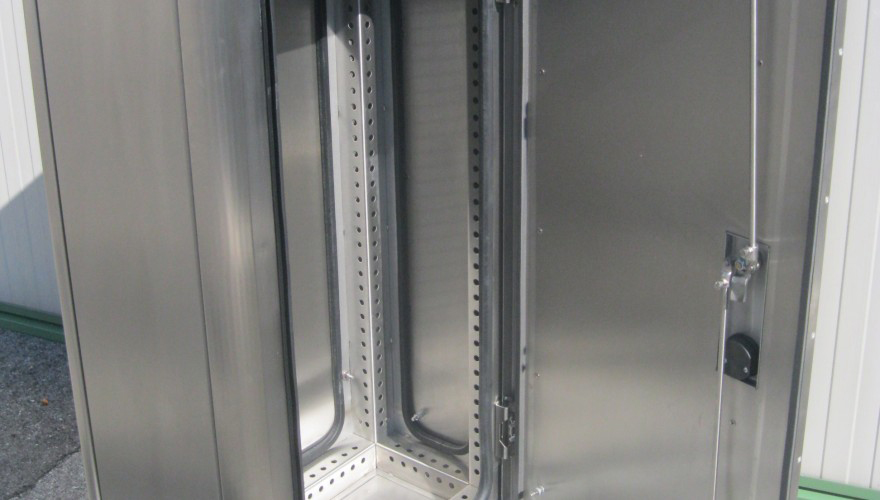

Hydal AS supply custom-made cabinets in stainless steel. You can choose from our PLIP cabinet or our double-walled aluminum cabinet ALX with stainless steel outer walls.
Specifications
Areas of use
- All outdoor applications
As a rule, stainless steel cabinets are used in very demanding environments. Sometimes aluminum cabinets is a good alternative, but for use in aquaculture, offshore/marine, tunnels, food industry, chemical processing plants etc., stainless steel is often preferred.
Safe and flexible
installation
- From 75 mm base/plinth for concrete foundation with fixed height, optional cover plate or door in front
- Base/plinth for trench, optional fixed height, optional cover plate or door in front
- Adjustable base/plinth 600-900mm, cover plate in front
- Wall or pole mounted
- Customer-specific options
Technical
information
- Made from stainless steel sheet 1.4401 (AISI 316)
- IP55 – IP66
- Painted or raw
- Painting: Polyester powder coating, standard is RAL 7032, other colors on request.
- Approvals:
EN 62208
